Winding Chats Cone Winding Drum Polyester Skein

1 Set
MOQ
Winding Chats Cone Winding Drum Polyester Skein
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Applicable Industries: Textile
Showroom Location: Bangladesh
Condition: New
Application: Winding Yarns
Automatic Grade: Semi-automatic
Production Capacity: HIGH SPEED
Memory Capacity: 999999m
Voltage: 380v/220v
Power: 90w 50HZ
Dimension(L*W*H): 13700*1150*1600mm
Weight: 500kg
Warranty: 1 Year
After Warranty Service: Video technical support, Spare parts, Field maintenance and repair service
Local Service Location: Egypt, Viet Nam, Brazil, Peru, Pakistan, Thailand, Colombia, Sri Lanka, Bangladesh, Uzbekistan
After-sales Service Provided: Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas
Certification: ISO9001:2008 / CE
Name: CE grooved drum polyeaster hank to cone winder / winding machine
Speed: 100-1000m/min
Take-up package: Tube Bobbin (0°) / Cone 4°20, 5°57, 9°15
Driving: Independence Control
Bobbin Type: 6"(170mm) cone, Customized
Auto Stop Device: Included
Waxing Device: Included
Package Diameter: Less and equal to 250mm
Informations de base
Certification: ISO9001:2008 / CE
Conditions de paiement et expédition
Packaging Details: Hank to cone winding machine -Standard export cases
Supply Ability: 1000 Set/Sets per Month
Description de produit
Product Detail

Product Specification

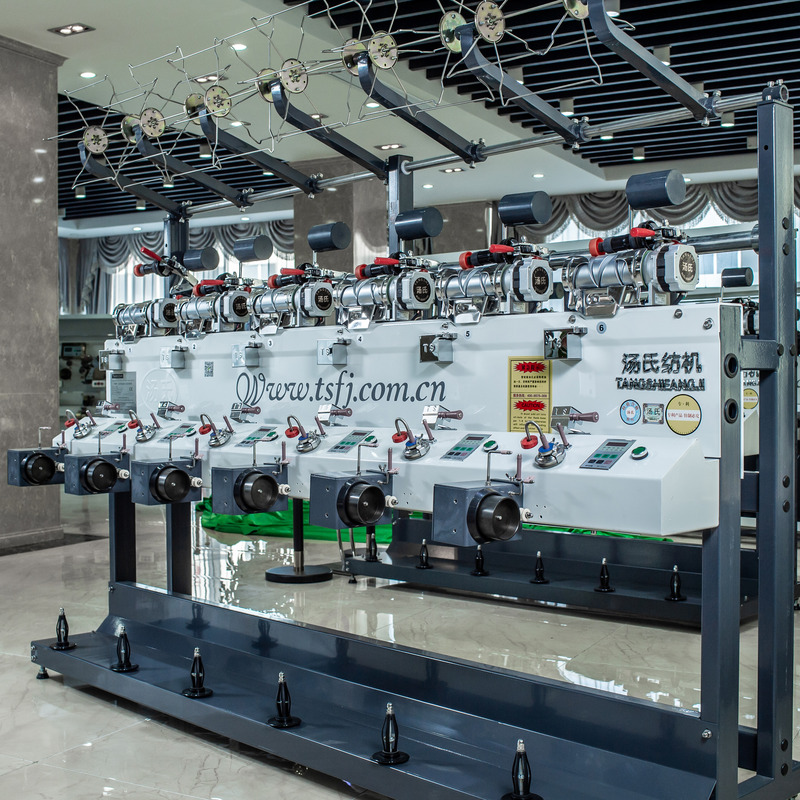

TS008P hank to cone winding machine----This machine is to take up hank yarn to cone yarn for the preparation of warping, knitting,yarn doubling,etc.The machine is suitable for Fancy yarn,acrylic yarn,embroidery thread,sewing thread,etc.

Bobbin type

6"(170mm)

Layout

Double-side, can be 12-120 spindles

Power supply

380v/220v±10% 50/60HZ

Motor power

90w/spindle

Working speed

100-1000m/min

Winding traverse

147mm

Max.package diameter

250mm

Driving

Individual

Auto stop device

Each spindle has motion sensor

Electronic Anti-Stack

Inverter control

Meter counter

Each spindle has meter counter

Air splicer

Optional

Lighting system

Included

Dimensions

L2250 x W 1100 x H 1400 mm (12 spindles)

Product Feature

1. with protecting yarn device and unique design according to your yarn so that yarn will not break when taking up .

2. with meter counter ,also winding speed and winding meters can be set on control panel.

3. with electronic anti-stack system,which can wind beautiful cones that can be perfect used in next process.

4. the spare parts and the production of our machines are high quality so that our machines have long service life.

Packaging & Shipping

Company Information

Xinghua Tangshi Textile Machinery Co.,Ltd was established in 1993, which located in XingHua district industrial park(XingHua exit of NINGJINYAN Highway). Xinghua Tangshi Textile Machinery Co.,Ltd was an experienced and professional manufacturer, it already has 23 years’ experience of producing drum winding machines, with advanced technics and production equipments it can output more one thousand winding machines annually. after these years hard work and faith cooperation, Tangshi Textile Machinery Co.,Ltd got a good reputation. our products like GA014 series soft and tight winding machine, TS008 semi-automatic soft and tight winding machine, TS230,280,290,300 big take-up winding machine. and we also can make the special machines according to the customers different demands. we service the textile industry in conformance with the aim of “professional produce, faith operation, reputation brand ”. the products are widely sold at domestic and also export to south-east asia countries gradually. Can supply kinds of winding machine is our company’s feature, good quality and timely deliver is our promise. sincerely hope we can go forward hand in hand and set up bright life together! Winding machine------------Tangshi Textile Machine Co.,Ltd will be your best choose!
