Name: Winding Wires Forward Government Skein To Cone Windmill Porcelain
Brand: Winding Wires Forward Government Skein To Cone Windmill Porcelain
SKU: TS008P
Rating: 4.5 (141 reviews)

traits Galerie Description de produit Demandez une citation

traits

Caractéristiques

Condition: New

Application: Winding Yarns

Automatic Grade: Semi-automatic

Production Capacity: HIGH SPEED

Memory Capacity: 999999m

Model Number: TS008P

Voltage: 380v/220v

Power: 90w 50HZ

Dimension(L*W*H): L 13700 x W 1050 x H 1650 mm

Weight: 2400kg

Warranty: 12 Month

After-sales Service Provided: Engineers available to service machinery overseas

Certification: ISO9001:2008 / CE

Name: TS008P Hank

Informations de base

Certification: ISO9001:2008 / CE

Model Number: TS008P

Conditions de paiement et expédition

Packaging Details: Standard export cases

Supply Ability: 70 Set/Sets per Month

Description de produit

Product Description

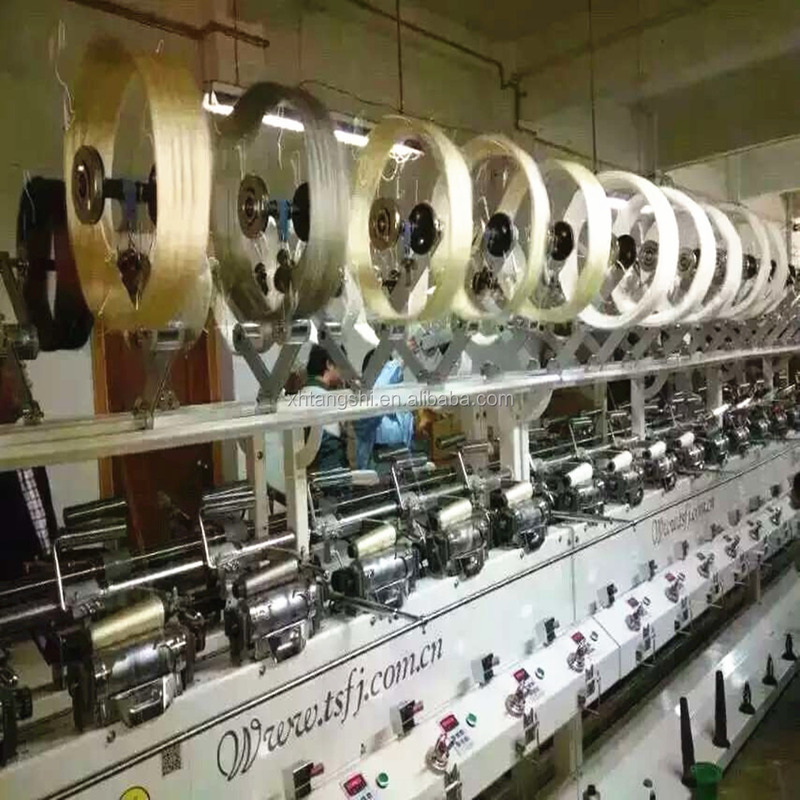

TS008P Hank to cone winding machine is for winding yarns from Hank to Cone, they are applied to the processes such as warping, knitting and yarn combining etc..

Feature:

1. Drive: every spindle per motor

2. Winding speed: 300-500 M/min

3. Has function of auto stop when yarn break.

4. Package Dia≤ 250mm; Take-up Traverse: 150mm;

5. Each spindle with length counter;

6. Advanced control panel;

Technical parameters:

Bobbin type:	6"(170mm)
Layout	Double-side, can be 12-96 spindles
Power Supply	Three phases 380V 50/60HZ
Driving	Every spindle per motor
Power Comsumption	0.09KW/spindle
Take-up package	Tube Bobbin (0°) / Cone 4°20, 5°57, 9°15
Yarn tension and waxing device	Every spindle has a yarn tension and waxing device
Auto Stop Device	Each spindle install auto stop device
Electronic Anti-Stack	Inverter control
Cleaner device	Every spindle has a Mechanical Knife yarn cleaner
Electronic Yarn Cleaner	Optional installed
Air Splicer	Optional installed
Lighting System	Optional installed
Dimensions	L 13700 x W 1050 x H 1650 mm
