Aperçu /Produits/Machine à enrouler les filaments/Thread Polyester Precision Winding Nylon Winding Machine

Thread Polyester Precision Winding Nylon Winding Machine

1 Set
MOQ
$2,000.00(>=1 Sets)
Prix
Thread Polyester Precision Winding Nylon Winding Machine
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Applicable Industries: textile
Showroom Location: None
Condition: New
Application: yarn winding
Type: Spinning Production Line
Production Capacity: HIGH SPEED
Spinning Method: Ring Spinning
Automatic: Yes
Dimension(L*W*H): Depend
Weight: 900KG
Power: 7.5KW
Warranty: 1 Year
After Warranty Service: Video technical support, Online support, Spare parts
Local Service Location: None
After-sales Service Provided: Free spare parts, Video technical support, Online support, Engineers available to service machinery overseas
Certification: iso
Number of Spindle: 24
Name: Textile Machinery
Product name: Yarn Winding Machine
Material: Steel
Color: Picture
Spinning Equipment: Bobbin Winder
Function: Textrued Yarn
Keywords: Motor Winding Machine
Operation Form: hank to cone or cone to cone
Informations de base
Certification: iso
Conditions de paiement et expédition
Packaging Details: WOODEN CASE STANDARD EXPORT PACKAGES
Supply Ability: 5 Set/Sets per Day
Description de produit

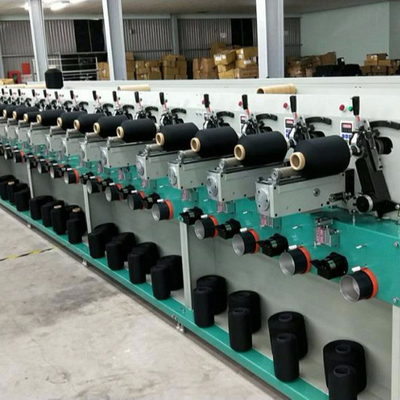

FHJM-A straight precision cone to cone and hank to cone winding machine is a series of winder series produced by Feihu textile machinery company. It is suitable for all kinds of raw materials such as silk, hemp, yarn, etc. cylinder. this machine has high characteristics productivity, low loss, low noise, long life, stable performance.

Features:

Using centralized control, Individual management

Using DC brush motor, more power saving

Using computer control, Broken yarn stopped , Metering function

Using Soft start,Less loss,easy to use.

Using mechanical anti-stack,Soft edge,Make bobbin more uniform

Using Lubricating oil, The noise is lower, Accessories long service life

Adjustable forming length, Shoulder angle and tension control

Model:

Single-side, single spindle, centralized control

Spindle:

4 spindles/group, the standard 24 spindles / set,

min 4 spindles/set.

Spindle distance:

370mm

Oil way:

Automatic oiling, speed adjustable

Winding method:

Single spindle active precision winding

Winding shape:

Straight edge, bevel edge adjustable

Winding tube:

Parallel bobbin, pagoda bobbin

Winding travel:

120-230mm

Winding speed:

≤500m/min

Winding diameter:

≤280mm

Skein diameter:

≤550mm

Cartridge diameter:

≤320mm

Actual power:

120 W/spindle

Dimensions:

L1620 X W710 X H1560 mm/4 spindles

Master control box L440 X W260 X H1320mm

Applicable yarns:

Textured or flat filaments, elastic yarns, silk, staple yarns, fine technical yarns etc.

We could make special type according to the customer’s request.
